Automatic Linear Spindle Capping Machine
The Automatic Spindle Capping Machine is a versatile bottle screw capping solution, ideal for enhancing efficiency in bottling and sealing operations. Designed with precision and flexibility, this machine is essential for handling a variety of cap types and sizes. It is perfectly suited for industries such as healthcare, beauty, food, and beverages, efficiently managing screw caps, flip-top caps, spray caps, dropper caps, metal caps, and twist-off caps with ease. Equipped with PLC control for enhanced automation, it operates in a linear type configuration, ensuring smooth and consistent performance. Additionally, the machine holds a CE Certificate, which guarantees compliance with high standards of quality and safety, making it a reliable choice for any production line.
MAIN FEATURE
1. Equipped with six spindle wheels, this machine ensures consistent and accurate cap application across a wide range of products, enhancing sealing efficiency and product integrity.
2. Featuring two sets of mechanical clutches, the machine offers superior control over torque application, ensuring each cap is secured with precision while protecting the integrity of both the cap and the product. A servo motor-driven system is available as an option for high performance and easy operation.
3. Simplify the setup process with easy-to-use front knob adjustments, allowing for quick and accurate changes to accommodate different cap sizes and types, facilitating a seamless transition between products.
4. A sophisticated non-vibratory feeder system ensures a steady and controlled supply of caps to the capping mechanism, reducing noise levels and enhancing operational efficiency. The feeder's capacity can be customized and can typically store 800 caps at a time, depending on the cap size.
5. Wide Cap Range Compatibility: Capable of handling 400, 410, and CRC caps ranging from 8 mm to 120 mm, this machine offers exceptional flexibility for various packaging needs.
6. Engineered for fast and easy changeovers, this machine significantly reduces downtime, allowing for more time spent in production.
Product Parameters
| Name/Model | NP-LC Automatic linear spindle capping machine |
| Capacity | 0-200b/min (Subject to bottle and cap) |
| Cap Diameter | Φ20-120mm |
| Bottle Height | 40-460mm |
| Demensions | 1060*896*1620mm |
| Voltage | AC220V 50/60Hz |
| Power | 1600W |
| weight | 500KG |
| Cap Feeding System | Elevator Feeder |
6 Wheels
1. Each wheels speed is indivadually adjustable, requency controlling
2. The wheels can run in opposite direction to make cap fitting the bottles well if necessary
3. Wheels are made of soft material to prevent caps from damage
4. Wheels are horizontally adjustable for different sizes of caps
5. Wheels are vertically adjustable for bottles of different height
6. Each wheels driven by one motor
Two-layer Bottle Clamp Belt
The double belts height is adjustable to fit differnet sizes bottles.and the angle is adjustable according to the bottle shape, more stable. Speed is frenquecy contolled to match the conveyor and capping speed
Motors 1. 6 motors for 6 capping wheels, and the motors can change to servo motor for torgue adjustable if customer need
2. 2 motors for botle clamping belt
3. 1 motor for machine height adjutment up and down
4. Capping torgue is adjustable for option

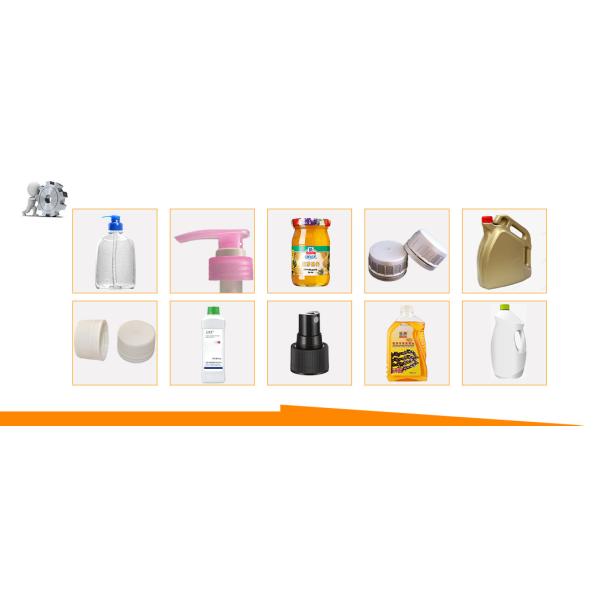

Product Application
After-Sale Service
1. Installation:
Our team of skilled technicians is ready to travel and install the capping machine. The service fee covers installation, travel, meal expenses, and other related costs.
2. Training:
To ensure the optimal performance of the capping machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.
3. Guarantee:
When repairing the capping machine, we provide efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.
4. Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the capping machine.
5. Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.
6. Spare Parts:
During transportation, we include a set of vulnerable spare parts for the capping machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.
